MA
MA Halogen Moisture Analyzer
Halogen moisture analyzer, 0.001 g / 0.001 % moisture, RS-232.
Key features
- Halogen lamp heating, 45 – 160 °C adjustable
- 10 test modes stored — one per material
- Backlit display, simple button panel
- Moisture readability down to 0.001 % (MA54E)
- RS-232 interface for printer and PC
Photo gallery

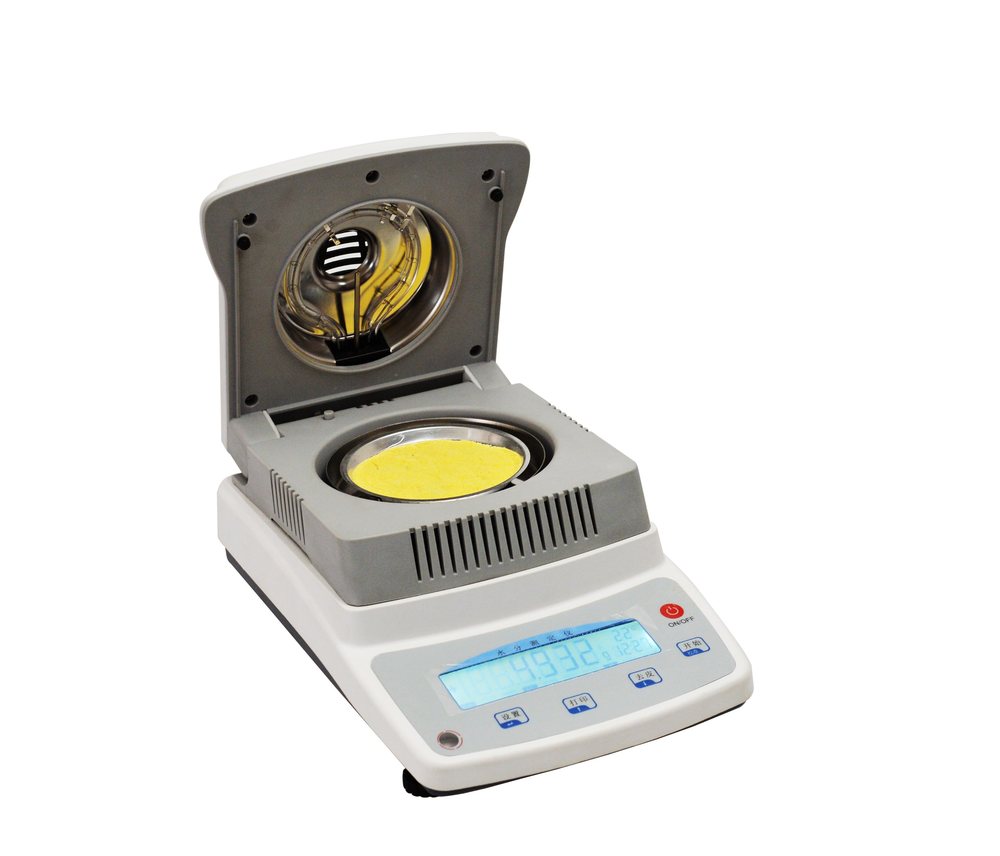

Front view, display and keypad, side profile and weighing pan. Full-resolution photos available on request.
Every capacity, one table
| Model | Weighing range | Readability (weight) | Moisture readability | Pan size | Heating source | Temperature range | Interface |
|---|---|---|---|---|---|---|---|
| MA120A | 0 – 120 g | 0.01 g | 0.1 % | Ø 110 mm | Halogen lamp | 45 – 160 °C | RS-232 |
| MA120B | 0 – 120 g | 0.005 g | 0.05 % | Ø 110 mm | Halogen lamp | 45 – 160 °C | RS-232 |
| MA120C | 0 – 120 g | 0.001 g | 0.01 % | Ø 110 mm | Halogen lamp | 45 – 160 °C | RS-232 |
| MA120D | 0 – 120 g | 0.001 g | 0.01 % | Ø 110 mm | Halogen lamp | 45 – 160 °C | RS-232 |
| MA54E | 0 – 50 g | 0.0001 g | 0.001 % | Ø 110 mm | Halogen lamp | 45 – 160 °C | RS-232 |
Other capacities, pan sizes and housing colours are available on request.
Send Inquiry
Fill in as much as you can. Specification, sample type and destination country let us quote accurately the first time.
Need a different configuration?
Specifications listed here are standard configurations. Models, ranges, detector options, interfaces and branding can all be customised. Send us your measurement requirement and we will propose a configuration within one working day.
